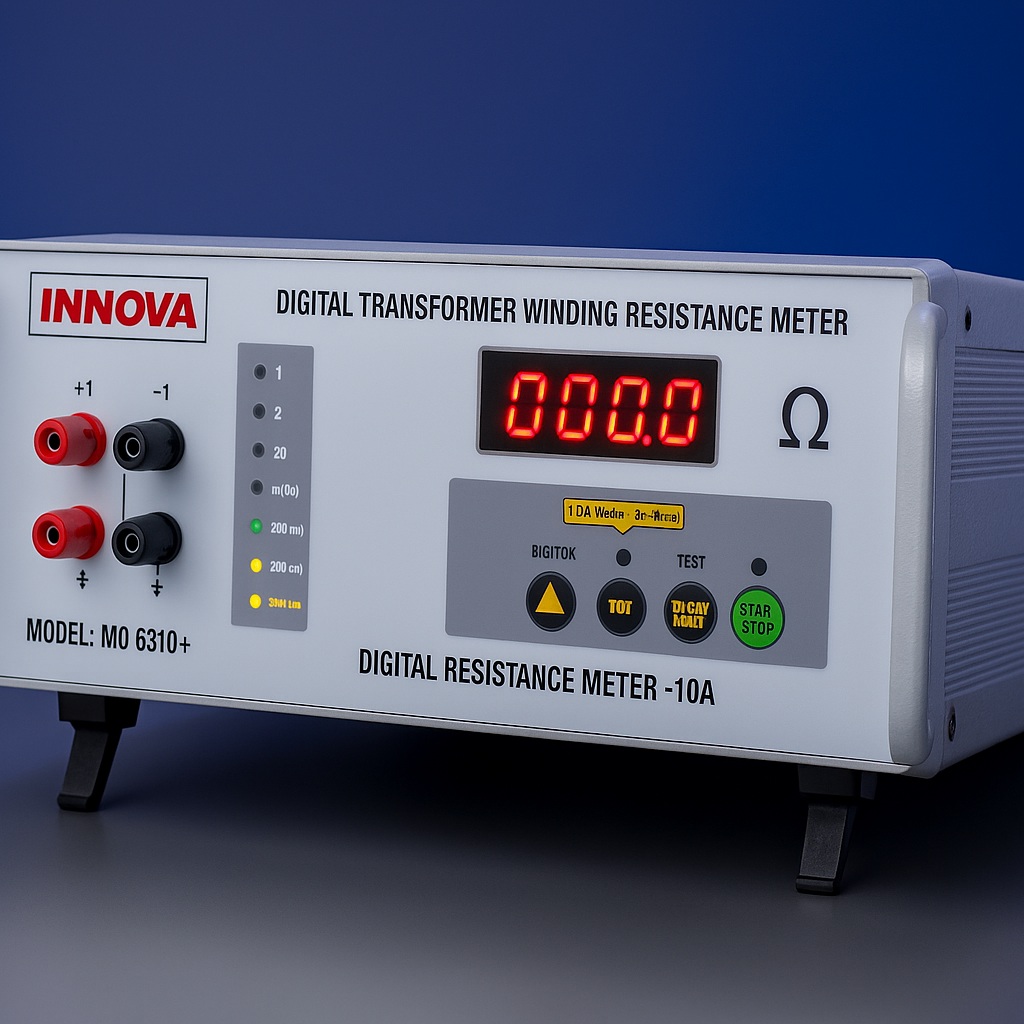

Innova MO-6310+ Winding Resistance Meter
Professional-Grade 10A Transformer Winding Resistance Meter
Professional-Grade 10A Transformer Winding Resistance Meter
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Range | 7 measurement ranges: 2 milli Ohms to 2000 Ohms |
| Accuracy | ±(0.5% + 2 digits) |
| Test Current | 10A, 1A, 100mA, 10mA, 1mA & 0.1mA |
| Display | 0.56 inch, 7 segment 4 ½ Digit LED display |
| Power Supply | Rechargeable Li-Ion Battery(11.1V) |
| Operating Temperature | -15°C to +55°C |
| Storage Temperature | -25°C to +65°C |
| Dimensions | 380 × 300 × 180mm |
| Weight | 5.9 Kgs |
Frequently Asked Questions
The MO-6310+ offers enhanced accuracy at ±(0.1% + 2 digits), extended measurement range up to 200kΩ, higher test current up to 10A for improved user experience and professional applications.
Yes, the MO-6310+ is specifically designed for large power transformers with its 10A maximum test current and extended measurement range, making it ideal for utility-scale and industrial transformer testing.
The MO-6310+ is built for harsh industrial environments with an extended operating temperature range of -15°C to +55°C and robust construction to withstand field conditions while maintaining measurement accuracy.
